NaikMotor – Yamaha Jepang merilis moped skuter Jog dan Jog Deluxe 2021 dengan warna baru pada Rabu, 3 Maret 2021. Yamaha pun memastikan 4 varian warna sebelumnya akan terus diproduksi.
Yamaha memberikan pewarnaan baru yang sporty terhadap moped Jog dan Jog Deluxe dan telah diluncurkan pada Rabu (03/03/2021). Moped Yamaha ini dikenal untuk komuter urban jarak dekat.

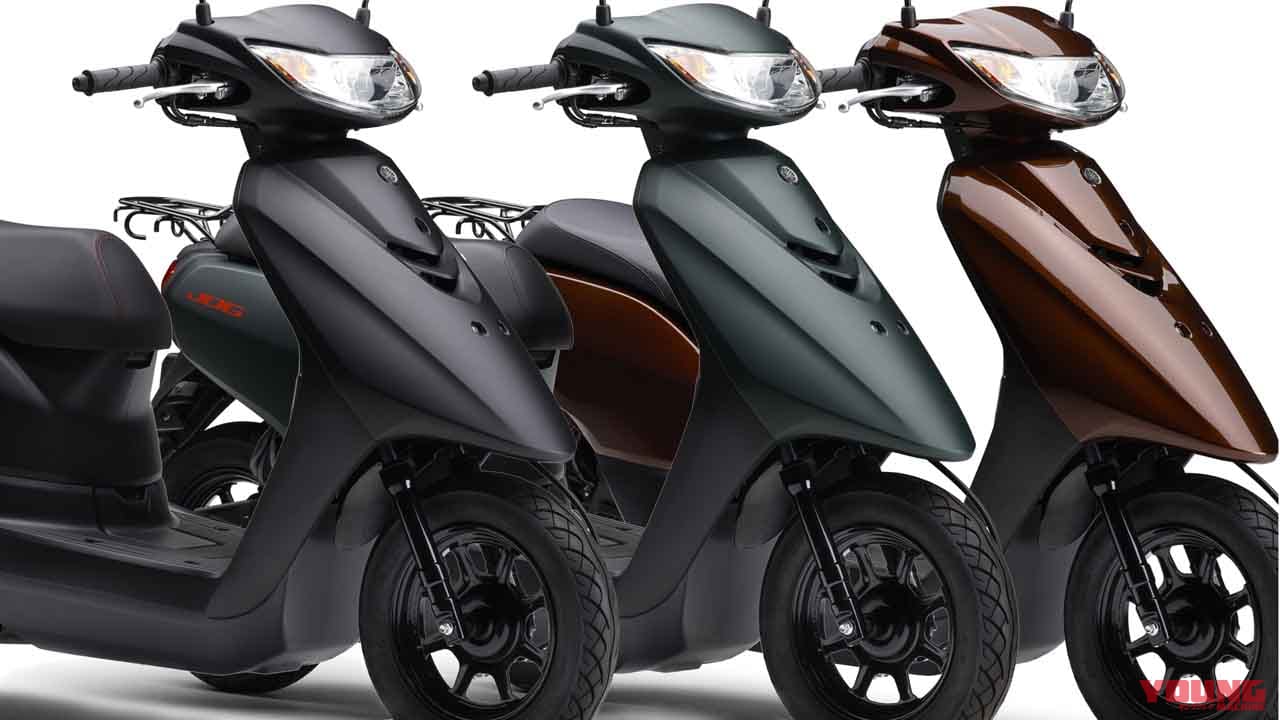

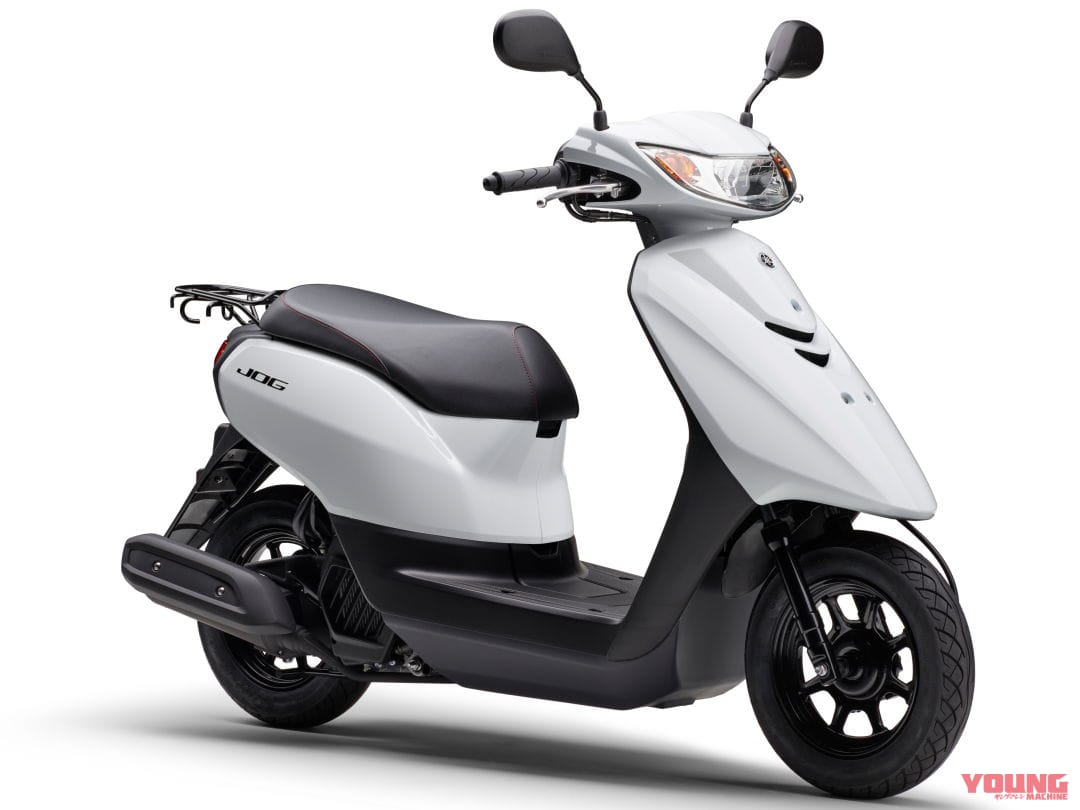

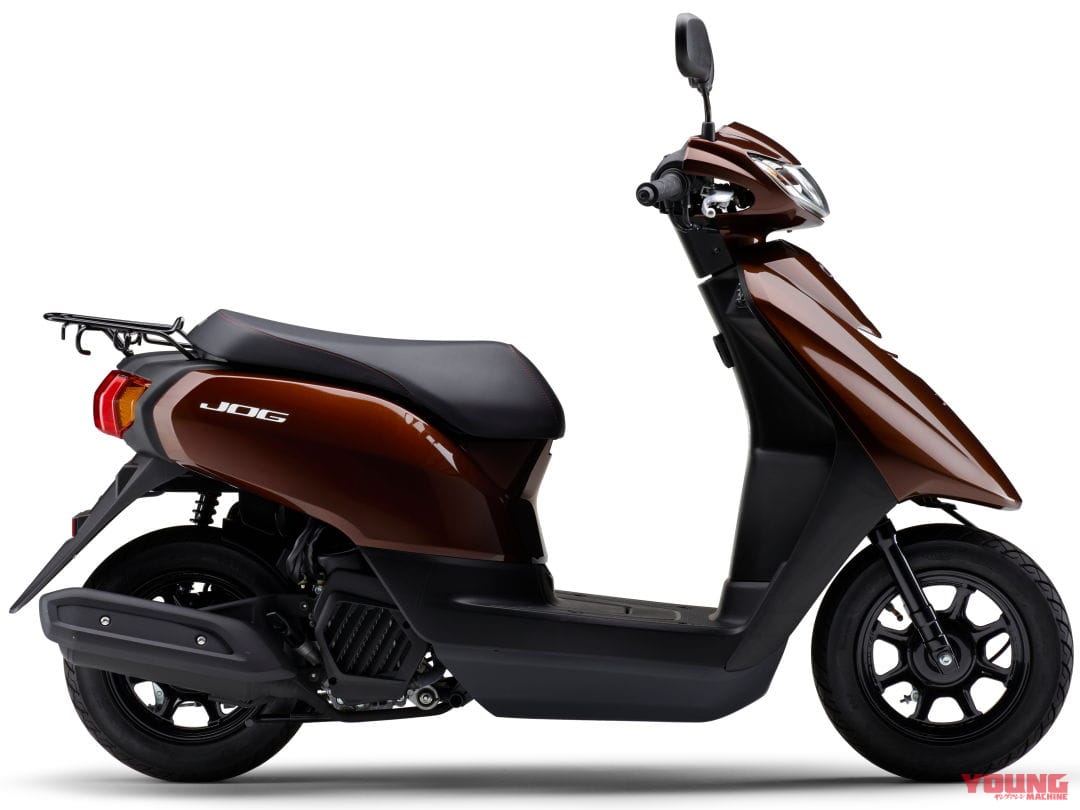

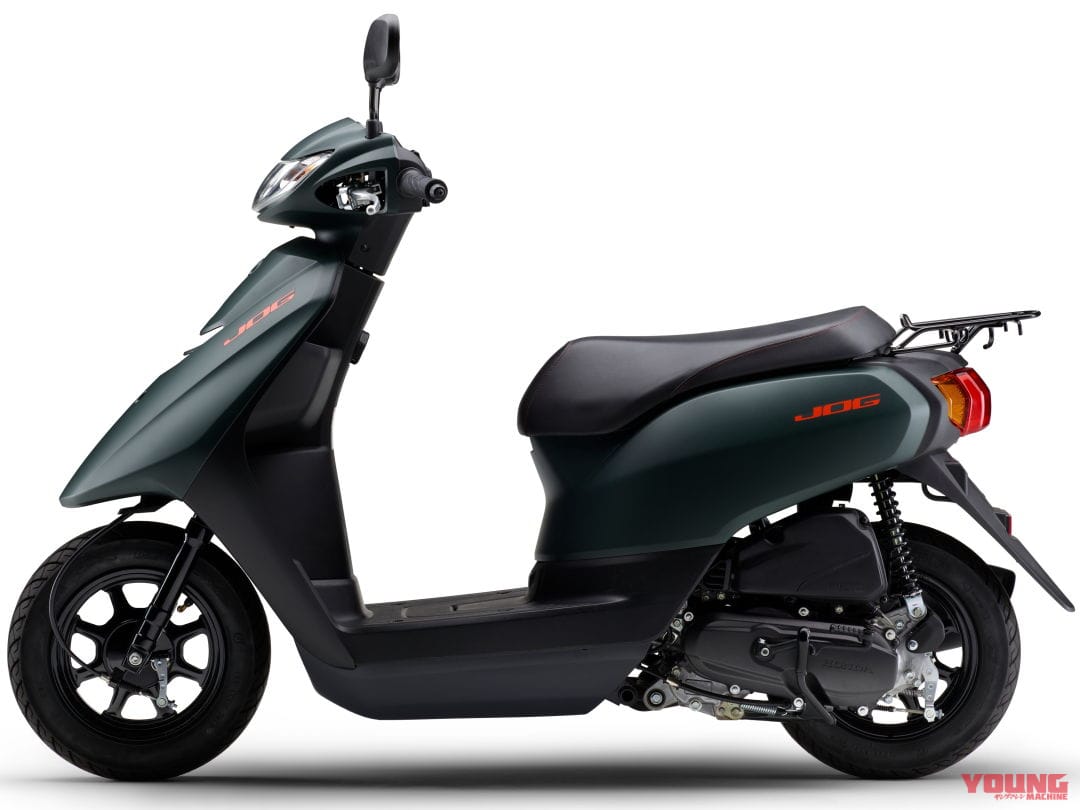

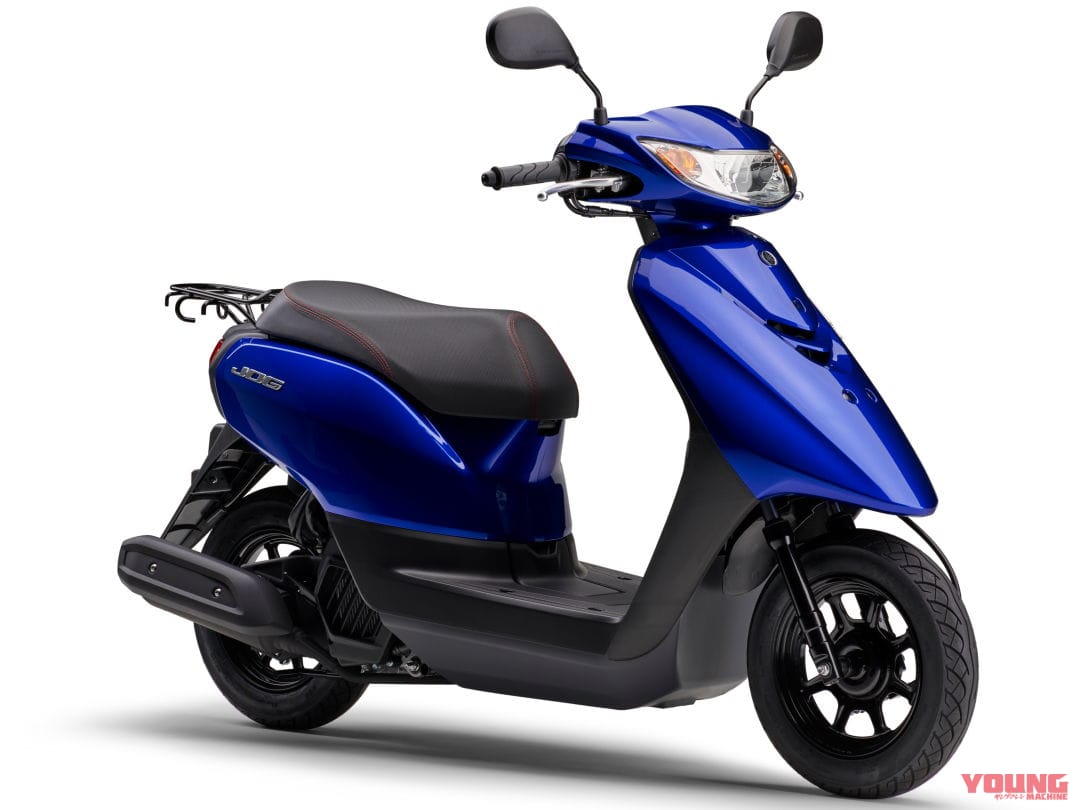

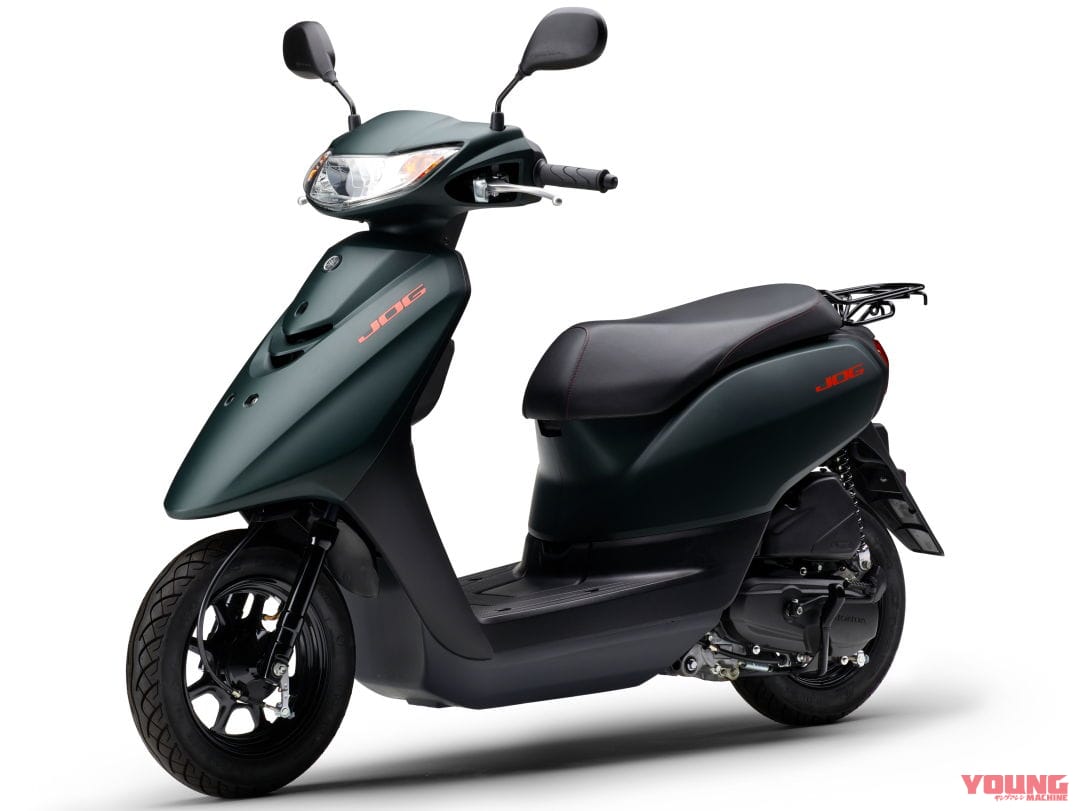

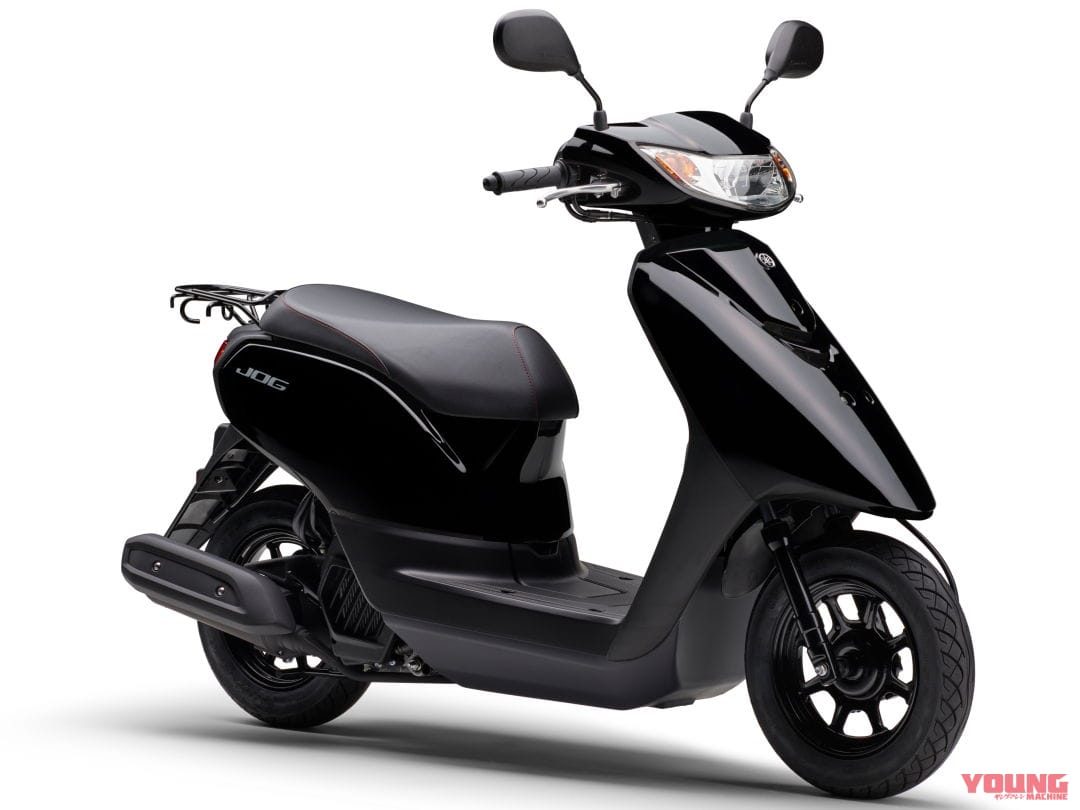

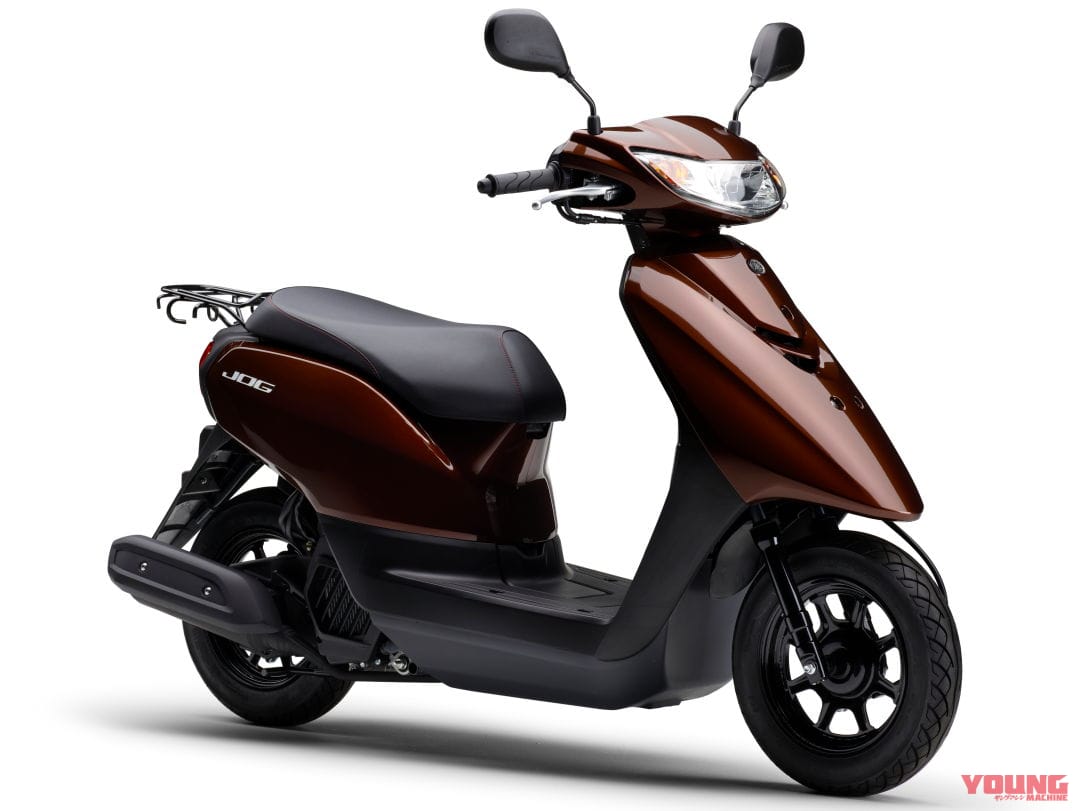

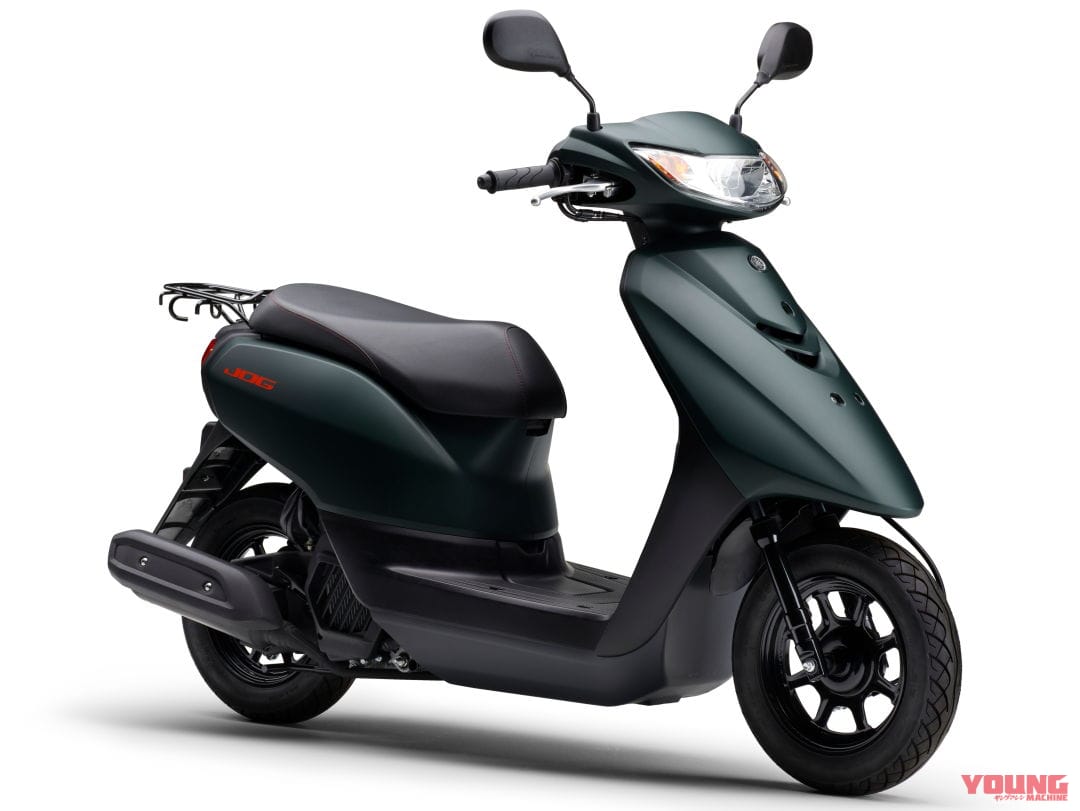

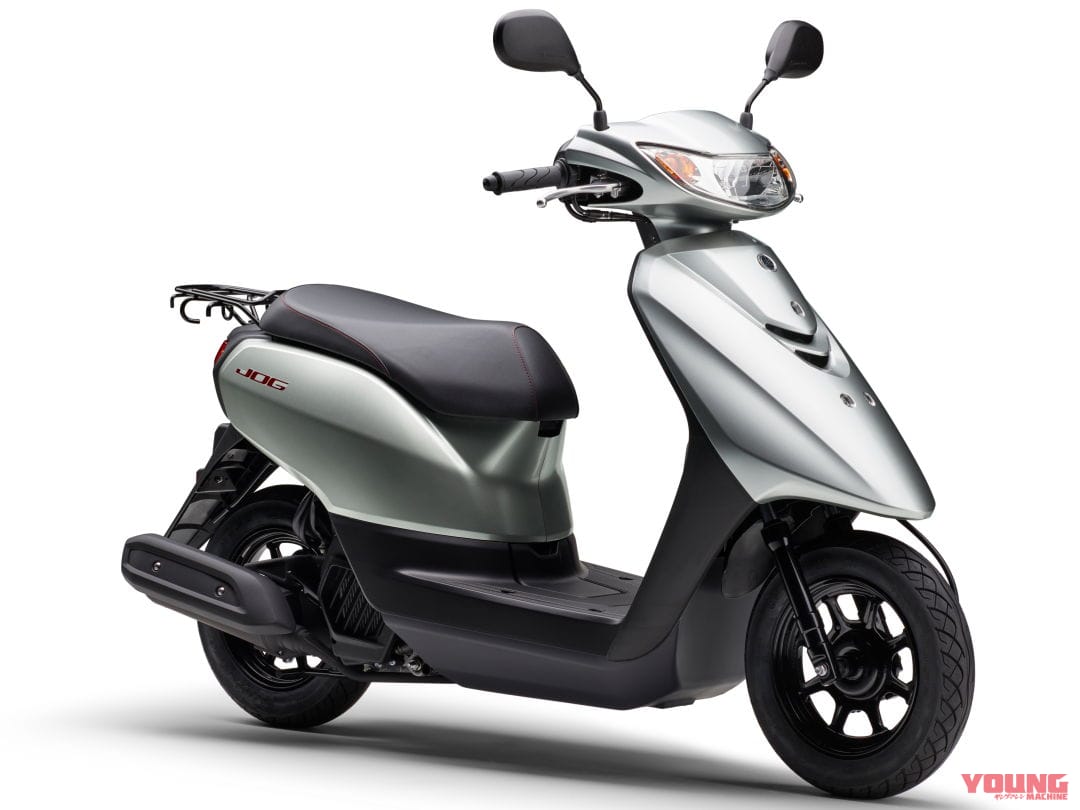

Saat ini total koleksi warna dari moped Jog ada 7 varian, yaitu Matte Green dan Brown (cokelat) dari tipe yang standar, Blue (biru) dari versi Deluxe, dan Matte Silver, Black (hitam), dan White (putih) yang akan terus dipasarkan.
Dilansir dari Young Machine, layaknya Vino, Jog dilengkapi dengan rem kombinasi yang mendukung pengereman dan sistem idling stop (hanya untuk Jog Deluxe). Akan diproduksi oleh Honda Motor Co., Ltd., Jog standar dibanderol sekitar Rp 22 jutaan dan versi Deluxe seharga Rp 24 jutaan.
Untuk spesifikasi lebih lanjut dapat dilihat di bawah ini: (Litha/Prob/NM)
| Certified model / motor stamping model | 2BH-AY01 / AF74E | |
|---|---|---|
| Overall length / overall width / overall height | 1,675mm / 670mm / 1,040mm | |
| Seat height | 705 <720> mm | |
| Distance between axes | 1,180mm | |
| Minimum ground clearance | 105mm | |
| Vehicle weight | 78kg <79kg> | |
| Fuel consumption rate * 1 | Ministry of Land, Infrastructure, Transport and Tourism notification value Fixed fuel consumption value * 2 |
80.0km / L (30km / h) When one person is on board |
| WMTC mode value * 3 | 58.4km / L (Class 1) When 1 person is on board | |
| Motor type | Water cooling, 4-stroke, SOHC, 2-valve | |
| Cylinder number array | Single cylinder | |
| Total displacement | 49cm 3 | |
| Inner diameter x stroke | 39.5mm x 40.2mm | |
| Compression ratio | 12.0: 1 | |
| Maximum output | 3.3kW (4.5PS) /8,000r/min | |
| Maximum torque | 4.1N ・ m (0.42kgf ・ m) /6,000r/min | |
| Starting method | Self-kick combination type | |
| Lubrication method | Wet sump | |
| Engine oil capacity | 0.70L | |
| Fuel tank capacity | 4.5L (designated as unleaded regular gasoline) | |
| Intake / fuel system / fuel supply system | Fuel injection | |
| Ignition method | TCI (transistor type) | |
| Battery capacity / model | 12V, 3.5 <5.0> Ah (10HR) / GTZ5S <GTZ6V> | |
| Primary reduction ratio / secondary reduction ratio | n / a / 12.321 | |
| Clutch type | Dry, centrifuge, shoe | |
| Transmission / transmission method | V-belt continuously variable transmission / automatic | |
| Gear ratio | 2.850-0.860: Continuously variable transmission | |
| Frame format | Underbone | |
| Caster / trail | 26 ° 30’/ 76mm | |
| Tire size (front / rear) | 80 / 100-10 46J (tubeless) / 80 / 100-10 46J (tubeless) | |
| Braking device type (front / rear) | Mechanical Leading Trailing Drum Brake / Mechanical Leading Trailing Drum Brake | |
| Suspension system (front / rear) | Telescopic / unit swing | |
| Headlamp bulb type / headlamp | Halogen bulb / 12V, 40 / 40W x 1 | |
| Riding capacity | 1 person | |
